RM-PA17731B
Specifications RM-PA17731B Parameters Indicator requirements Unit Frequency Range Transmission:27.5-31.0 Reception:17.7-21.2 GHz Polarization Circular(orthogona1-po1) Gain Transmission : ≥ 40.0dBi+20log(f/29.25GHz) Receiving : ≥ 36.5dBi+20log(f/19.45GHz) dB Axle ratio ≤1.5 VSWR ≤1.75 Port isolation ≥55 dB Antenna Surface Thickness 20-25 mm Weight ≤ 3.0 Kg Surface Size 430×290(±5) mm -

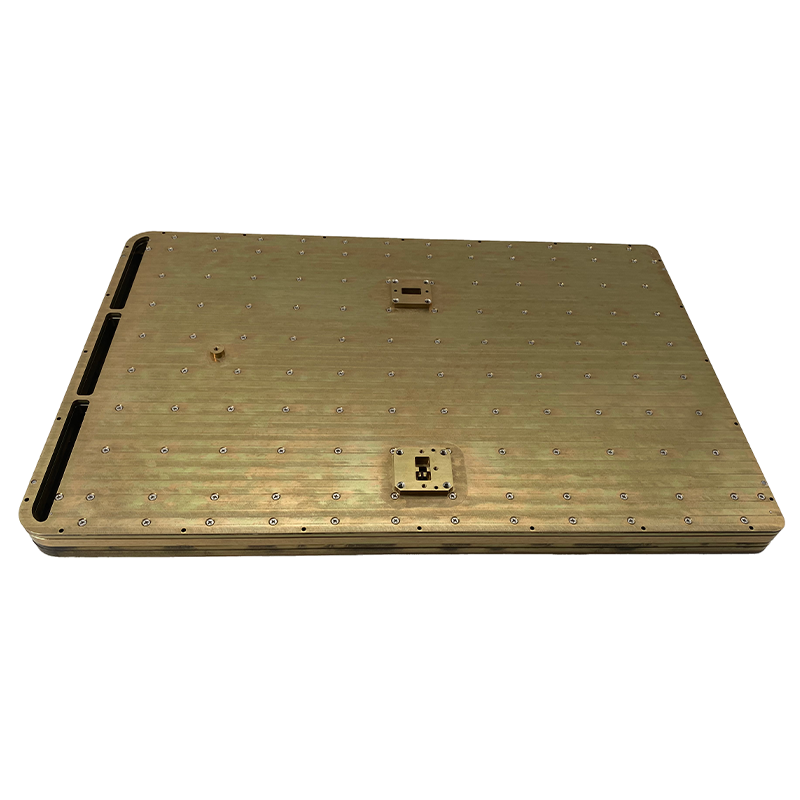

Planar Antenna 30dBi Typ. Gain, 10-14.5GHz Frequency Range RM-PA10145-30
l Worldwide satellite coverage (X,Ku,Ka and Q/V bands)
l Multi-frequency and multi-polarization common aperture
l High aperture efficiency
l High isolation and low cross polarization
l Low profile and lightweight
-
RM-PA107145A
Specifications RM-PA107145A Parameters Indicator requirements Unit Frequency Range Transmission:13.75-14.5 Reception:10.7-12.75 GHz Polarization Linear Gain Transmission : ≥32dBi+20LOG (f/14.5) Receiving : ≥31dBi+20LOG (f/12.75) dB First Side-lobe(full band) ≤ -14 dB Cross Polarization ≥35(Axial) dB VSWR ≤1.75 Port isolation ≥55(without include blocking filter) dB Antenna Surface Thickness 15-25(different process... -
RM-PA107145B
Specifications RM-PA107145B Parameters Indicator requirements Unit Frequency Range Transmission:13.75-14.5 Reception:10.7-12.75 GHz Polarization dual-polarization 0.6m array Gain Transmission: ≥ 37.5dBi+20log（f/14.25） Receiving: ≥ 36.5dBi+20log（f/12.5） dB 0.45m array Gain Transmission: ≥ 31.5dBi+20log (f/14.25) Receiving: ≥ 30.5dBi+20log (f/12.5) dB First Sidelobe ＜ -14 dB Cross Polarization ＞33(Axial) dB VSWR ＜ 1.... -
71-76GHz,81-86GHz Dual Band E-Band Dual Polarized Panel Antenna RM-PA7087-43
Specifications RM-PA7087-43 Parameters Indicator requirements Unit Frequency Range 71-76 81-86 GHz Polarization vertical and horizontal polarization Gain ≥43 In-band fluctuation:0.7dB(5GHz) dB First Sidelobe ≤-13 dB Cross Polarization ≥40 dB VSWR ≤1.8:1 Waveguide WR12 Material Al Weight ≤2.5 Kg Size(L*W*H) 450*370*16 (±5) mm -
Planar Antenna 10.75-14.5GHz Frequency Range, 32 dBi Typ. Gain RM-PA1075145-32
Specifications RM-PA1075145-32 Parameter Specification Unit Frequency Range 10.75-14.5 GHz Gain 32 Typ. dBi VSWR ≤1.8 Polarization Dual Linear Cross Polarization Isolation ＞30 dB Isolation ＞55 dB 3dB Beamwidth E plane 4.2-5 ° H plane 2.8-3.4 Side lobe ≤-14 Finishing Color conductive oxidation Interface WR75/WR62 Size 460*304*32.2(L*W*H) mm Radome yes -
Slotted Waveguide Antenna 22dBi Typ. Gain, 9-10GHz Frequency Range Edit RM-SWA910-22
Ideal for Communication and Radar
Low VSWR
Small Size
