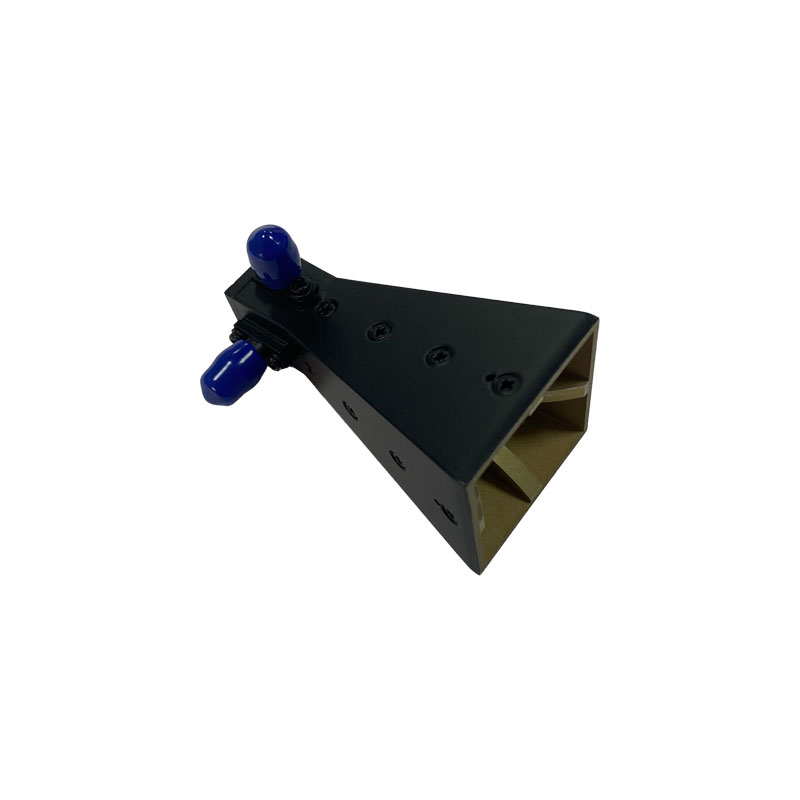

Broadband Horn Antennas

Broadband Horn Antenna Available from 100MHz to 110GHz RF Miso Broadband horn antennas adopt linear polarization. This series of horn antennas has the characteristics of high gain, high frequency doubling, low VSWR, and light weight. Note: we can provide specific gain horn antennas according to customers' requirement, please contact RF Miso.

  • Table list viewTable list view
  • Grid viewGrid view
  • Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-BDPHA023-10 0.2 3 10 Dual Linear 46~259 36~132 1.5:1 50 N-Female 40
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-BDPHA1840-18 18 40 18 Dual Linear 15.5-22.5 20.7-32 1.5 30 2.92mm-Female 30
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-DPHA218-15O 2 18 15 Dual Linear / / 1.4:1 / SMA-Female /
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-BDPHA046-11 0.4 6 11 Dual Linear / / 1.5 / SMA-Female >30
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-BDPHA046-10 0.4 6 10 Dual Linear / / 1.35:1 / SMA-Female 55
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-BDPHA212-7 2 12 7 Dual Linear / / 1.5 / SMA-Female /
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-DPHA2030-15 20 30 15 Dual Linear / / 1.3 60 SMA-Female 70
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-BDPHA412-10 4 12.5 10 Dual Linear / / 1.5:1 / SMA-Female /
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-BDPHA6245-12 6 24 12 Dual Linear / / 1.3:1 / SMA-Female /
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-BDPHA1015-20 10 15 20 Dual Linear / / <1.5 >50 / 60
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-BDPHA9395-22 93 95 22 Dual Linear / / 1.3 60 WR10 67
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Cross Pol. Isolation,Typ. (dB) Connector Port Isolation, Typ (dB) LINK
    RM-BDPHA4244-21 42 44 21 Dual Linear / / 1.2 60 2.4mm-F 70
    circle
    123456 Next > >> Page 1 / 7
