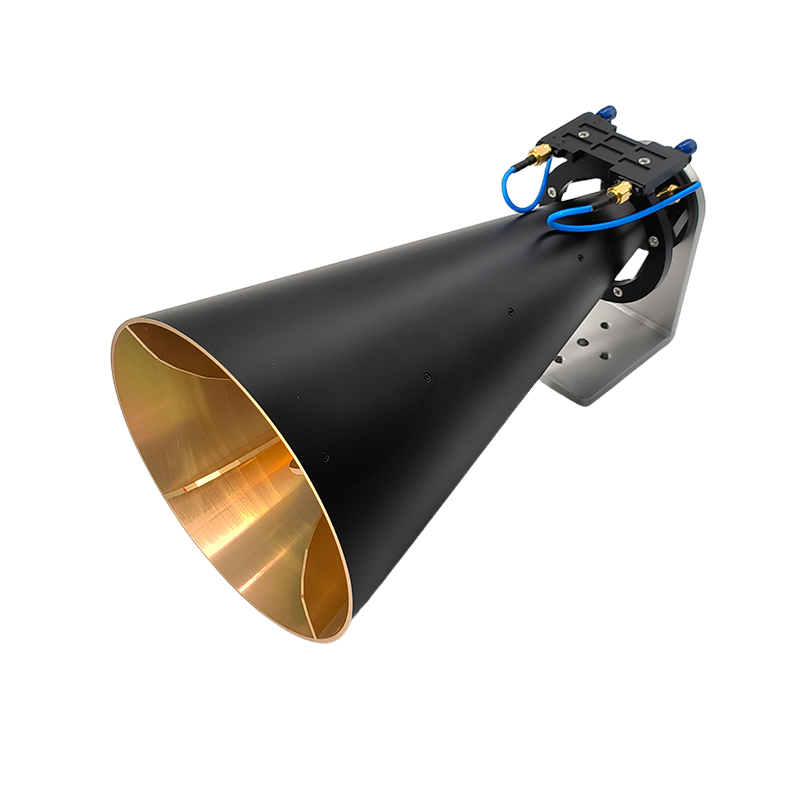

Circular Polarization Horn Antennas

  • Table list viewTable list view
  • Grid viewGrid view
  • Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector Port Isolation, Typ (dB) AR, Typ. (dB) LINK
    RM-DCPHA076-10 0.7 6 10 Dual Circular / / <2 SMA-Female 45 <1.5
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector Port Isolation, Typ (dB) AR, Typ. (dB) LINK
    RM-DCPHA1218-10 12 18 10 Dual Circular 37~53 37-53 1.4 SMA-Female 25 <1.3
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector Port Isolation, Typ (dB) AR, Typ. (dB) LINK
    RM-CPHA1015-20 10.5 15 20 LHCP / / 1.2 SMA-Female / <1.6
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector Port Isolation, Typ (dB) AR, Typ. (dB) LINK
    RM-DCPHA4516-10 4.5 16 10 Dual Circular / / <1.5 SMA-Female 45 <1
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector Port Isolation, Typ (dB) AR, Typ. (dB) LINK
    RM-DCPHA15-10 1 5 10 Dual Circular / / 1.5 SMA-Female 45 <1
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector Port Isolation, Typ (dB) AR, Typ. (dB) LINK
    RM-CPHA2427-20 24.5 27.5 20 LHCP / / 1.1 2.92-Female / <1
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector Port Isolation, Typ (dB) AR, Typ. (dB) LINK
    RM-DCPHA26-10 2 6 10 Dual Circular Polarized / / / SMA-Female / <2
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector Port Isolation, Typ (dB) AR, Typ. (dB) LINK
    RM-DCPHA1826-15 18 26.5 15 RHCP / / <1.5 SMA-Female 30 <1.5
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector Port Isolation, Typ (dB) AR, Typ. (dB) LINK
    RM-CPHA1826-15 18 26.5 15 RHCP / / 1.1 SMA-Female / <1.5
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector Port Isolation, Typ (dB) AR, Typ. (dB) LINK
    RM-CPHA82124-15 8.2 12.4 15 Switchable circular polarization / / 1.5 N-Female / 1.2
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector Port Isolation, Typ (dB) AR, Typ. (dB) LINK
    RM-DCPHA1840-12 18 40 12 Dual Circular / / ≤2 2.92-Female 15 1.5
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. Connector Port Isolation, Typ (dB) AR, Typ. (dB) LINK
    RM-DCWPA2731-10 27 31 10 Dual Circular 59 58 <1.3 SMA-F / <0.6
    circle
    123 Next > >> Page 1 / 3
