Dual Polarized Horn Antenna 21dBi Typ.Gain, 42GHz-44GHz Frequency Range RM-DPHA4244-21
The RM-DPHA4244-21 is a full-band, dual-polarized, horn antenna assembly that operates in the frequency range of 42 to 44 GHz. The antenna features an integrated orthogonal mode converter that provides high port isolation. The RM-DPHA4244-21 has a typical 60 dB cross-polarization isolation, a nominal gain of 21 dBi at the center frequency, a typical 3db beamwidth of 13.82 degrees in the E-plane, a typical 3db beamwidth of 17.36 degrees in the H-plane.
-

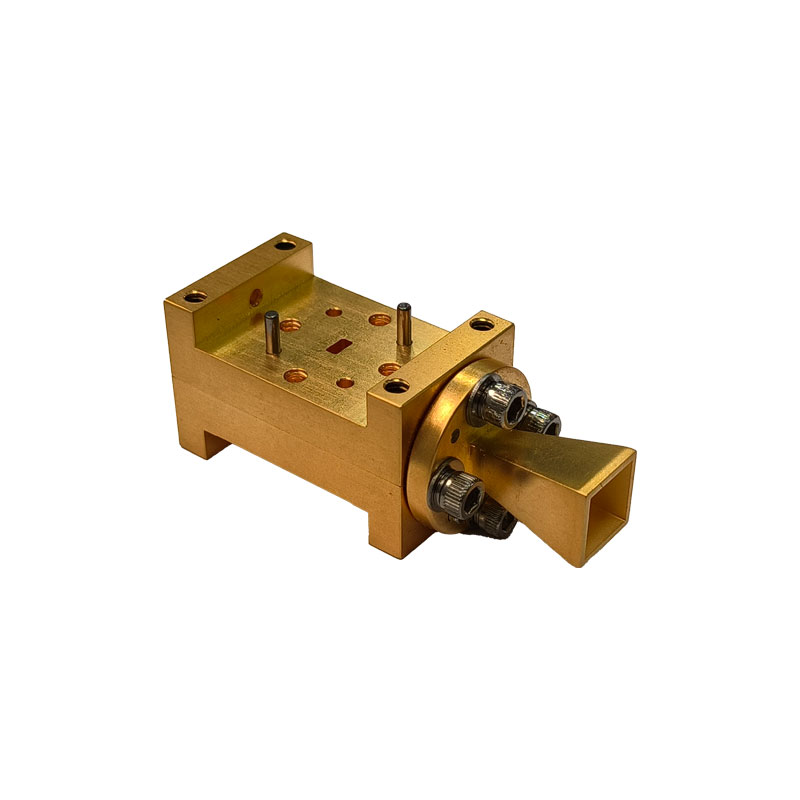

Dual Polarized Horn Antenna 16dBi Typ.Gain, 60-90GHz Frequency Range RM-DPHA6090-16
The RM-DPHA6090-16 is a full-band, dual-polarized, WR-12 horn antenna assembly that operates in the frequency range of 60 to 90GHz. The antenna features an integrated orthogonal mode converter that provides high port isolation. The RM-DPHA6090-16 supports vertical and horizontal waveguide orientations and has a typical 35 dB cross-polarization isolation, a nominal gain of 16 dBi at the center frequency, a typical 3db beamwidth of 28 degrees in the E-plane, a typical 3db beamwidth of 33 degrees in the H-plane. The input to the antenna is a WR-12 waveguide with a UG-387/U-M threaded flange.
_______________________________________________________________
In Stock: 3 Pieces
-
Dual Polarized Horn Antenna 18dBi Typ.Gain, 50-75GHz Frequency Range RM-DPHA5075-18
The RM-DPHA5075-18 is a full-band, dual-polarized, WR-15 horn antenna assembly that operates in the frequency range of 50 to 75 GHz. The antenna features an integrated orthogonal mode converter that provides high port isolation. The RM-DPHA5075-15 supports vertical and horizontal waveguide orientations and has a typical 35 dB cross-polarization isolation, a nominal gain of 18 dBi at the center frequency, a typical 3db beamwidth of 28 degrees in the E-plane, a typical 3db beamwidth of 33 degrees in the H-plane. The input to the antenna is a WR-15 waveguide with a UG-387/U-M threaded flange.
_______________________________________________________________
In Stock: 10 Pieces
-
Dual Polarized Horn Antenna 17dBi Typ.Gain, 33-50GHz Frequency Range RM-DPHA3350-17
The RM-DPHA3350-17 is a full-band, dual-polarized, WR-22 horn antenna assembly that operates in the frequency range of 33 to 50GHz. The antenna features an integrated orthogonal mode converter that provides high port isolation. The RM-DPHA3350-17 supports vertical and horizontal waveguide orientations and has a typical 35 dB cross-polarization isolation, a nominal gain of 17 dBi at the center frequency, a typical 3db beamwidth of 28 degrees in the E-plane, a typical 3db beamwidth of 33 degrees in the H-plane. The input to the antenna is a WR-22 waveguide with a UG-387/U-M threaded flange.
_______________________________________________________________
In Stock: 5 Pieces
-
Dual Polarized Horn Antenna 10dBi Typ.Gain, 24GHz-42GHz Frequency Range RM-DPHA2442-10
The RM-DPHA2442-10 is a full-band, dual-polarized, WR-28 choke flange feed horn antenna assembly that operates in the frequency range of 24 to 42GHz. The antenna features an integrated orthogonal mode converter that provides high port isolation. The RM-DPHA2442-10 supports vertical and horizontal waveguide orientations and has a typical 35 dB cross-polarization Isolation, a nominal gain of 10 dBi at the center frequency, a typical 3db beamwidth of 60 degrees in the E-plane, a typical 3db beamwidth of 60 degrees in the H-plane. The input to the antenna is a WR-28 waveguide with a UG-599/U-M flanges and 4-40 threaded holes.
_______________________________________________________________
In Stock: 2 Pieces
-
Dual Polarized Horn Antenna 20dBi Typ.Gain, 75GHz-110GHz Frequency Range RM-DPHA75110-20
The RM-DPHA75110-20 is a full-band, dual-polarized, WR-10 horn antenna assembly that operates in the frequency range of 75 to 110 GHz. The antenna features an integrated orthogonal mode converter that provides high port isolation. The RM-DPHA75110-20 supports vertical and horizontal waveguide orientations and has a typical 35 dB cross-polarization suppression, a nominal gain of 20 dBi at the center frequency, a typical 3db beamwidth of 16 degrees in the E-plane, a typical 3db beamwidth of 18 degrees in the H-plane. The input to the antenna is a WR-10 waveguide with a UG-385/U-M threaded flange.
_______________________________________________________________
In Stock: 3 Pieces
-
Dual Polarized Horn Antenna 18dBi Typ.Gain, 75GHz-110GHz Frequency Range RM-DPHA75110-18
The RM-DPHA75110-18 is a full-band, dual-polarized, WR-10 horn antenna assembly that operates in the frequency range of 75 to 110GHz. The antenna features an integrated orthogonal mode converter that provides high port isolation. The RM-DPHA75110-18 supports vertical and horizontal waveguide orientations and has a typical 40 dB cross-polarization suppression, a nominal gain of 18 dBi at the center frequency, a typical 3db beamwidth of 22 degrees in the E-plane, a typical 3db beamwidth of 33 degrees in the H-plane. The input to the antenna is a WR-10 waveguide with a UG-387/U-M threaded flange.
-
Dual Circular Polarized Horn Antenna 12dBi Typ. Gain, 18-40GHz Frequency Range RM-DCPHA1840-12
RF MISO’s Model RM-DCPHA1840-12 is a dual circular polarized horn antenna that operates from 18 to 40GHz, The antenna offers 12 dBi typical gain. The antenna VSWR below 2. The antenna RF ports are 2.92-female coaxial connector. The antenna can be widely used in EMI detection, orientation, reconnaissance, antenna gain and pattern measurement and other application fields.
-
Conical Dual Polarized Horn Antenna 2-8 GHz Frequency Range, 13 dBi Typ. Gain RM-CDPHA28-13
RF MISO’s Model RM-CDPHA28-13 is a dual polarized horn antenna that operates from 2 to 8GHz, The antenna offers 13 dBi typical gain. The antenna VSWR is 1.5:1 typical. The antenna cross polarization isolation is typical 50 dB and port isolation is 30 dB. It can be widely used in EMI detection, orientation, reconnaissance, antenna gain and pattern measurement and other application fields.
-
Broadband Dual Horn Antenna 12 dBi Typ. Gain, 6-24.5GHz Frequency Range RM-BDPHA6245-12
The RM-BDPHA6245-12 is a dual polarized broadband horn antenna that operates in the frequency range of 6 GHz to 24.5 GHz. The antenna offers a typical gain of 12dBi and low VSWR 1.3:1 with SMA-F connector. The antenna supports dual polarized waveforms. It is suitable for extensive applications such as EMC/EMI testing, surveillance, direction finding, as well aantenna s gain and pattern measurements.
-
Broadband Dual Polarized Horn Antenna 12 dBi Typ. Gain, 0.8-18 GHz Frequency Range RM-BDPHA0818-12
RF MISO’s Model RM-BDPHA0818-12 is a dual polarized lens horn antenna that operates from 0.8 to 18 GHz, The antenna offers 12 dBi typical gain. The antenna VSWR is typical 1.5:1. The antenna RF ports are SMA-F connector. The antenna can be widely used in EMI detection, orientation, reconnaissance, antenna gain and pattern measurement and other application fields.
______________________________________________________________
In Stock: 5 Pieces
-
Conical Dual Polarized Horn Antenna 12 dBi Typ. Gain, 0.8-18GHz Frequency Range RM-CDPHA0818-12
RF MISO’s Model RM-CDPHA0818-12 is a dual polarized lens horn antenna that operates from 0.8 to 18GHz, The antenna offers 12 dBi typical gain. The antenna VSWR is typical 1.5:1. The antenna RF ports are SMA-KFD connector. It can be widely used in EMI detection, orientation, reconnaissance, antenna gain and pattern measurement and other application fields.
