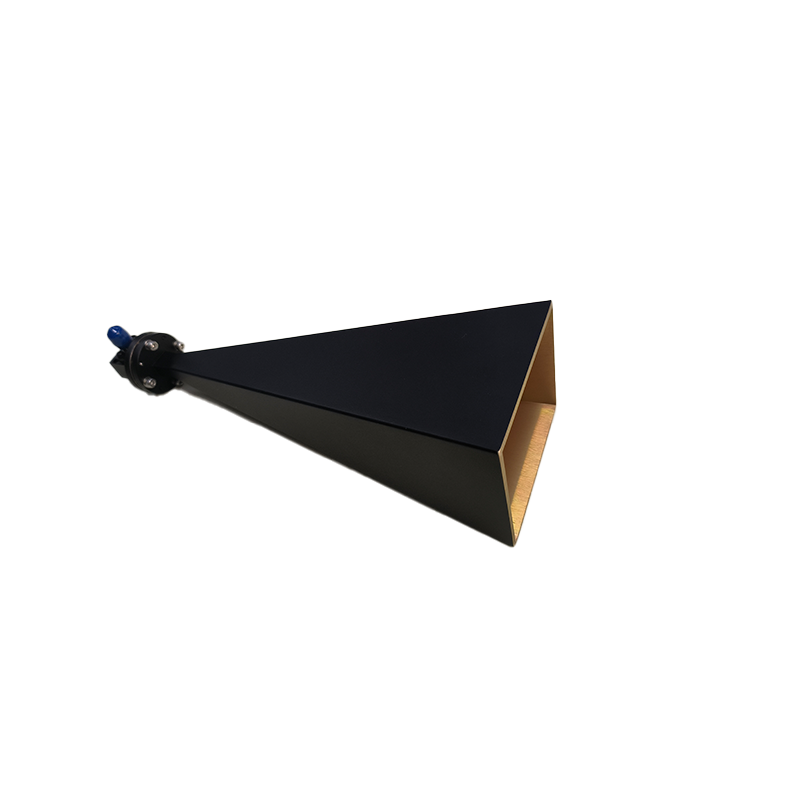

Standard Gain Horn Antennas

Standard Gain Horn Antenna Available from 1 to 500GHz RF Miso Standard gain horn antennas adopt linear polarization, providing an efficient and economical method for measurement.These horn antennas can be widely used in EMI detection, orientation, reconnaissance, antenna gain and pattern measurement and other applications. This series of horn antennas has the characteristics of high gain, Iow VswR, and light appearance. Note: Connectors can be matched according to your needs, please contact RF Miso

  • Table list viewTable list view
  • Grid viewGrid view
  • Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. RF Ports LINK
    RM-SGHA34-15 21.7 33 15 Linear 26.8-39.1 26.3-38.1 1.3 WR34
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. RF Ports LINK
    RM-SGHA28-15 26.5 40 15 Linear 26.8-39.1 26.1-38 1.3 WR28
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. LINK
    RM-SGHA1218-10 12 18 10 Linear 34-50.4 38.7-52.5 1.2
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization VSWR,Typ. RF Ports LINK
    RM-SGHA340-15 2.2 3.3 15 Linear 1.3 WR340
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. RF Ports LINK
    RM-SGHA42-20 17.6 26.7 20 Linear 14.6-21 15.1-21.9 1.3 WR42
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. RF Ports LINK
    RM-SGHA34-10 21.7 33 10 Linear 42.2-63.4 43.4-59.9 1.3 WR34
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. RF Ports LINK
    RM-SGHA34-25 22 33 25 Linear 7.6-10.2 8.6-11 <1.2 WR34
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. RF Ports LINK
    RM-SGHA15-25 50 75 25 Linear 8.7-11 7.2-10.6 1.1 WR15
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. RF Ports LINK
    RM-SGHA10-15 75 110 15 Linear 33.46-41.72 29.5-39.17 1.15 WR10
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. RF Ports LINK
    RM-SGHA10-20 75 110 20 Linear 11.7-15.8 11.8-16 1.1 WR10
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. RF Ports LINK
    RM-SGHA770-15 0.95 1.45 15 Linear 26.6° 26.6° 1.2 WR770
    circle
    Model Frequency,min.(GHz) Frequency,max.(GHz) Gain,Typ.(dBi) Polarization 3dB Beamwidth, E-Plane(Deg.) 3dB Beamwidth,H-Plane(Deg.) VSWR,Typ. RF Ports LINK
    RM-SGHA650-15 1 1.8 15 Linear 33.41° 31.03° 1.2 WR650
    circle
    123456 Next > >> Page 1 / 6
